Analytical Devices: Chamber Furnace For Annealing, Hardening And Brazing

Product Range :

Chamber Furnace

Accessories For Annealing, Hardening And Brazing

Summary :

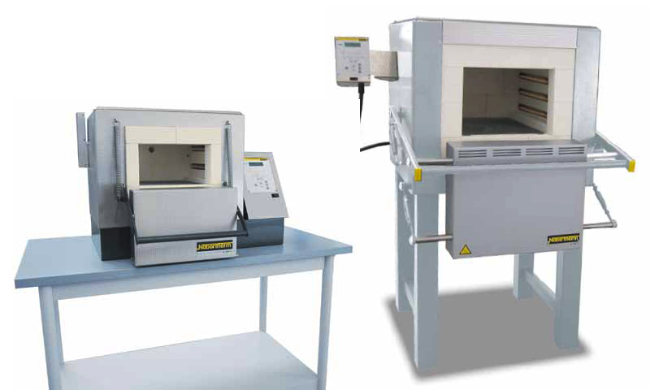

CHAMBER FURNACE

To withstand harsh use in the laboratory, e.g. when heat-treating metals, robust insulation with light refractory bricks is necessary. The chamber furnaces N 7/H - N 87/H are a perfect fit to solve this problem. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium in medical applications can be implemented without the use of expensive and complicated annealing systems.

• Tmax 1280 °C

• Three-sided heating from both sides and the bottom

• Heating elements on support tubes ensure free heat radiation and a long service life

• Bottom heating protected by heat-resistant SiC plate

• Low energy consumption due to multi-layer insulation

• Exhaust opening in the side of the furnace, or on back wall of chamber furnace for model N 31/H and higher

• Base frame included in the delivery, N 7/H - N 17/HR designed as table-top model

• Parallel guided downward swinging door (user protected from heat radiation)

• Gas spring dampers provide for easy door opening and closing

• Defined application within the constraints of the operating instructions

ACCESSORIES FOR ANNEALING HARDENING AND BRAZING

Our wide selection of chamber furnaces for annealing, hardening and brazing can be extended with a variety of accessories to suit your application. The accessories shown below represent only a small fraction of the products available. For further details, please see our separate catalogues for heat-treatment furnaces and hardening accessories.

Annealing Boxes

• Annealing boxes with or without protective gas connectors, up to 1100 °C, also in a tailor-made variant for cold evacuation, for instance for the annealing of small parts and bulk goods

Annealing Tray with Holder

• Annealing tram with alloy bag and holder with protective gas connection for models N 7/H to N 87/H for annealing and hardening under protective gas and quenching in air

Hearth Plates

• Hearth plates for up to 1100 °C for protection of the furnace floor for models N 7/H to N 87/H, edged on three sides

Hardening Tongs

• Hardening tongs in various sizes and forms for use in annealing and hardening

Heat Treating Foil

• Heat treating foil for wrapping of samples for oxidation-free annealing and hardening of steels up to 1200 °C

Gloves

• Heat-resistant gloves to 650 °C or 700 °C for protection of operator during loading
