Summary :

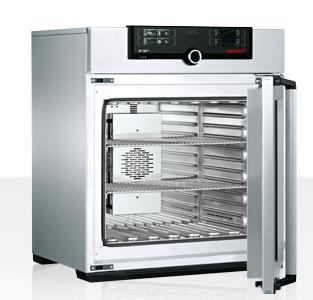

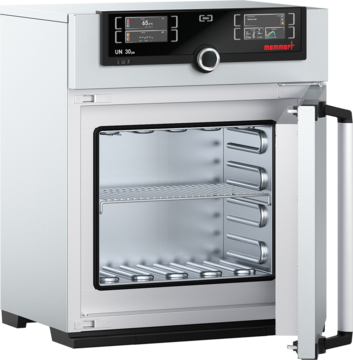

UNIVERSAL OVEN UN / UF / UNplus / UFplus

The universal heating oven / drying oven stands for unparalleled precise, even and gentle temperature control.

• Temperature range up to +300 °C

• 9 model sizes (32 to 1060 litres volume)

• 2 model variants: Single DISPLAY and Twin DISPLAY

• Natural convection or forced air circulation N/F

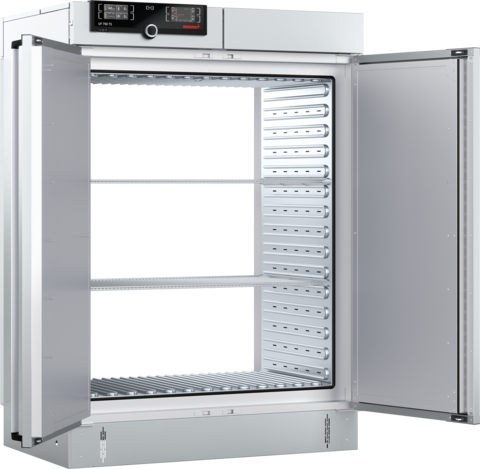

PASS-THROUGH OVEN UF TS

If you want to minimise contamination when transporting samples or components, the advantages of the Pass Through Oven (UF TS) are just what you need. Thanks to its easy-to-clean interior, fast recovery times after opening the door as well as homogeneous temperature distribution, this oven is the perfect material lock between the grey room and the cleanroom in the electronics and semiconductor, medicine or pharmaceutics industry.

• Temperature range up to +250 °C

• 4 model sizes (161 to 749 litres volume)

• 1 model variant: Twin DISPLAY

• Forced air circulation F

PARAFFIN OVEN UNpa

Five model sizes, for high-precision temperature control of the embedding medium, such as paraffin or wax. The range of functions and thermal safety of the paraffin oven UNpa are designed specifically for an absolutely reliable sample preparation in histology, forensics or microbiology. Your benefits? An optimum cost/benefit ratio for an appliance that guarantees, for many years, precise and even warming of the embedding medium without any loss in quality whatsoever.

• 5 model sizes (32 to 161 litres volume)

• Temperature range +30 °C to +80 °C

• Model variant: Twin DISPLAY

• High degree of thermal safety through multiple over temperature protection

• No feed or exhaust air, therefore an almost gas-tight chamber

CLEANROOM DRYING OVEN UF750plus

In order to guarantee the maximum quality assurance, the drying oven was tested in accordance with a uniform and statistically secured standard. The tested appliance was given the certificate in its standard version without any modifications such as particulate filters. Even with maximum air recirculation, the UF750 plus attains cleanroom class 7 in accordance with DIN EN ISO 14644-1, without recirculating air, it is certified in the chamber with cleanroom class 5.

• Temperature range up to +300 °C

• Model size 749 litres volume

• Model variant TwinDISPLAY

• Forced air circulation F

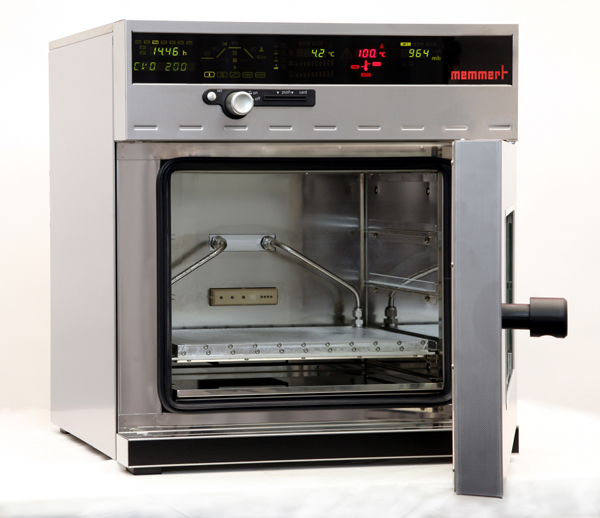

VACUUM DRYING OVEN VO

With short warming up times, high-precision temperature control and turbo-drying, the vacuum oven VO shows off all its strength – at the same time it can handle heat-sensitive or oxygen-sensitive substances and materials such as cosmetics, food, clocks, books or PCBs and other electronic components with unparalleled gentleness when drying. The direct contact between chamber load and the heat able and removable thermal shelves guarantees in all vacuum oven VO models a quick and even temperature control without loss of heat. Because of the direct contact between heating and chamber load, the heating and operating times in the vacuum drying oven VO are reduced by some 75 per cent compared to a conventional drying oven.

• Temperature range up to +200 °C

• 3 model sizes (29 to 101 litres volume)

• State-of-the-art control technology based on the P performance class for all models

• Anti-splinter; VDE-tested door construction for all models

• Pump control: Optimised rinsing procedures for pump membranes as needed, as well as signal output for pumps ON/OFF

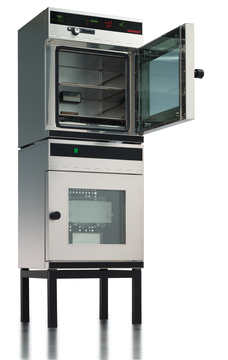

COOLED VACUUM OVEN VOcool

Low-temperature vacuum drying enables pharmaceutical or food labs to gently dry bacteria and starter cultures in the cooled vacuum oven VOcool. Furthermore, programme-controlled storage and transport scenarios for determining the behaviour of active ingredients or volumes at different pressure and temperature conditions can be simulated.

• Temperature range +5 up to +90 °C

• 2 model sizes (29 and 49 litres volume)

• State-of-the-art control technology based on the P performance class for all models

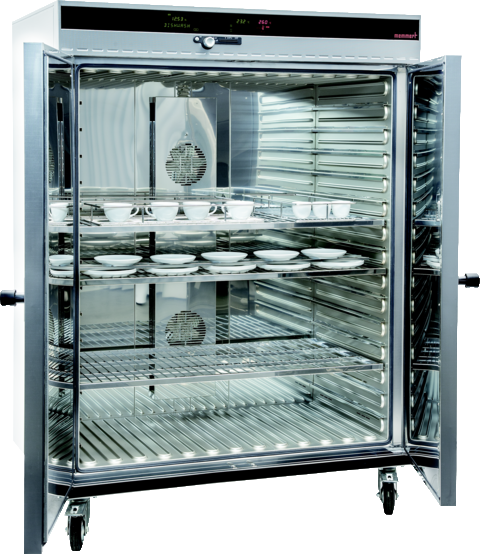

UNIVERSAL OVEN DISHWASHER UFP800DW

The air circulation heating oven UFP800DW has been setting standards in the area of dishwasher usability testing. To prevent temperature overshoots in any and all cases, the temperature control and heating power have been adapted to the test parameters stipulated in EN50242/EN60436.

• Temperature range up to +250 °C

• 1 model size (749 litres volume)

• Forced air circulation F

• Attached support brackets for steel testing grids, spacer strips, racks for cups and glasses
