Product Range :
Dial Reading Viscometer
DVE Viscometer
DV1 Digital Viscometer
DV2T Touch Screen Viscometer
DV2T EXTRA Touch Screen Viscometer
BF35 Viscometer
CAP1000 Viscometer
CAP2000 Viscometer
Cone Plate Wells Brookfield Viscometer
Falling Ball Viscometer
KU-3 Viscometer
Summary :

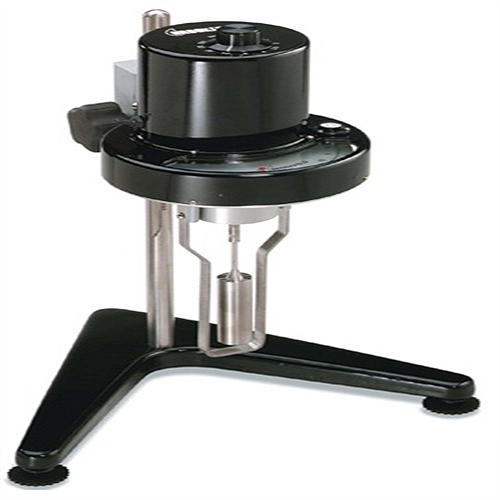

DIAL READING VISCOMETER
The direct-drive design results in extremely quiet operation and greater versatility while the universal power supply facilitates the use of worldwide power sources.
Features & Benefits
• Continuous torque sensing capability
• Torque measurement accuracy: 1% of full scale range
• Repeatability: 0.2% of full scale range
• Easy speed adjustment and on/off control
• Compatible with all Brookfield accessories
• NIST traceable viscosity standards available
• Electronic drive means quiet, reliable operation
• Universal power supply worldwide compatibility
• 2-Year limited warranty
• Traditional Brookfield quality
• Explosion-proof model is available. Call for details

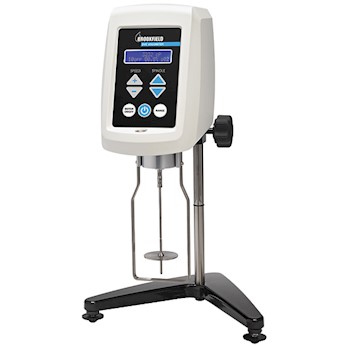

DVE LOW COST DIGITAL VISCOMETER
The DVE combines economy and ease of operation to provide reliable viscosity readings. Easy to use interface allows operators to change test parameters easily and test like a pro no time! The digital display ensures easy and accurate readout of test results for simultaneous measurement of viscosity and torque. Quality of manufacture guarantees reliable performance and long life.
Features & Benefits
• Low cost and easy to use
• Direct display in: cP or maps, % Torque, Spindle, and Speed
• Torque measurement accuracy: 1% of full scale range
• Repeatability: 0.2% of full scale range
• Compatible with all Brookfield accessories
• NIST traceable viscosity standards available
• 18 speeds for greater range capability (0.3 to 100 rpm)
DV1 DIGITAL VISCOMETER
A continuous sensing capability for rapid viscosity measurement makes this economical DV1 digital viscometer a standout. Measures viscosity and temperature simultaneously (with an optional temperature probe) with a choice of 18 different speeds. With its timed measurement function, data can easily be sent to a PC or printer. The DV1 is available in a choice of languages such as English, French, German, Portuguese, Russian and Spanish. Optional software allows the DV1 to collect, analyse and record test data.
Features & Benefits
• PC Interface for use with optional Wingather SQ Software and output connection to printer
• Available as a choice of multiple languages: English, French, German, Portuguese, Russian, Spanish
• Simplified user interface for more direct access to features
• Direct access to time measurement function (time to torque, time to stop)
• Temperature off-set capability to ±5°C
• Senses and displays continuously
• Viscosity (cP or mPa·s)
• Temperature (°C or °F) (OPTIONAL)
• % Torque
• Speed (rpm)
• Spindle used
• Torque measurement accuracy: 1% of full scale range
• Repeatability: 0.2% of full scale range
• Select all functions from user-friendly keypad
• Choice of 18 rotational speeds
• Optional RTD temperature probe
• Auto-zero function to ensure precision torque measurement
• Auto-range function to define full scale range (FSR) for all spindle/speed combinations
• Warns of under- or over-range torque measurement condition
• Printing to Dymo® capability
• Timed Stop feature to measure viscosity at precise user specified time interval
• Time to Torque feature to measure the time interval for sample to reach user defined torque value
• Compatible with all Brookfield accessories
• NIST traceable viscosity standards available

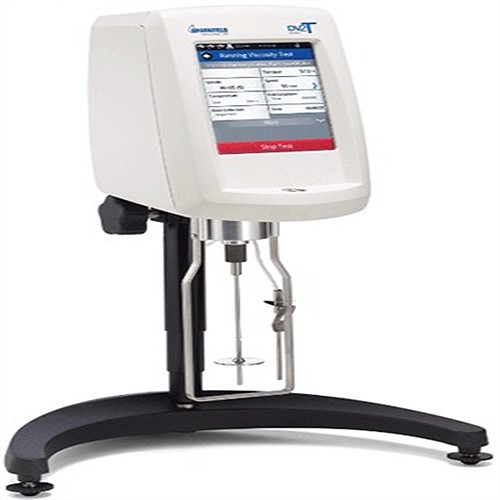

DV2T TOUCH SCREEN VISCOMETER
The New DV2T Viscometer features a 5-inch colour display to guide users through test creation and data gathering for fast and easy viscosity measurements. The DV2T also offers powerful new programming capabilities and results analysis including data averaging and QC limits with alarms. User instructions with multi-step test protocols can be created using the new Program Generator Software and uploaded to the DV2T through a USB Flash Drive (both included with instrument). Test Data can be recorded directly on a local printer or sent to a PC. Additional automated control and data collection can be achieved with optional RheocalcT software.
Features & Benefits
• 5-inch full colour, touch screen display supports multiple languages
• Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status
• Enhanced Security provides enhanced security with customizable user levels & password access to comply with regulatory requirements such as 21 CFR Part 11.
• Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison
• Auto range shows maximum viscosity measured with any spindle/speed combination
• USB PC interface provides optional computer control and automatic data gathering capability Download custom test programs with included PG Flash software.
• Front-facing bubble level for convenient viewing
• Built-in temperature probe
• Accuracy of ±1.0% of range with displayed test data
• Repeatability of ±0.2%
• NIST traceable viscosity standards available
• Also available: DV2T Extra with quick connect, durable ball bearing suspension system, quick action lab stand and free RheocalcT software.

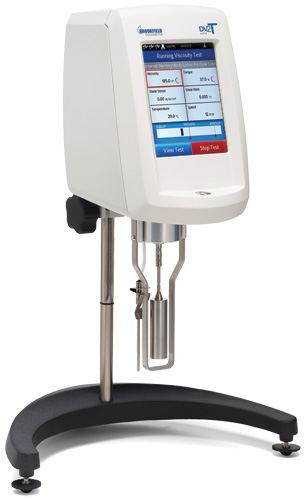

DV2T EXTRA TOUCH SCREEN VISCOMETER
The “EXTRA” provides all the features of the standard DV2T feature but with a more durable suspension system, EZ Lock Spindle Coupling, Quick Action Lab Stand, and RheocalcT for the ultimate user experience that also saves time and money.
The New DV2T Viscometer features a 5-inch colour display to guide users through test creation and data gathering for fast and easy viscosity measurements. The DV2T also offers powerful new programming capabilities and results analysis including data averaging and QC limits with alarms. User instructions with multi-step test protocols can be created using the new Program Generator Software and uploaded to the DV2T through a USB Flash Drive (both included with instrument). Test Data can be recorded directly on a local printer or sent to a PC. Additional automated control and data collection can be achieved with optional RheocalcT software.
Features & Benefits
• 5-inch full colour, touch screen display supports multiple languages
• Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status
• Enhanced Security provides enhanced security with customizable user levels & password access to comply with regulatory requirements such as 21 CFR Part 11.
• Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison
• Auto range shows maximum viscosity measured with any spindle/speed combination
• USB PC interface provides optional computer control and automatic data gathering capability Download custom test programs with included PG Flash software
• Front-facing bubble level for convenient viewing
• Built-in temperature probe
• Accuracy of ±1.0% of range with displayed test data
• Repeatability of ±0.2%
• NIST traceable viscosity standards available
• Also available: DV2T Extra with quick connect, durable ball bearing suspension system, quick action lab stand and free RheocalcT software.

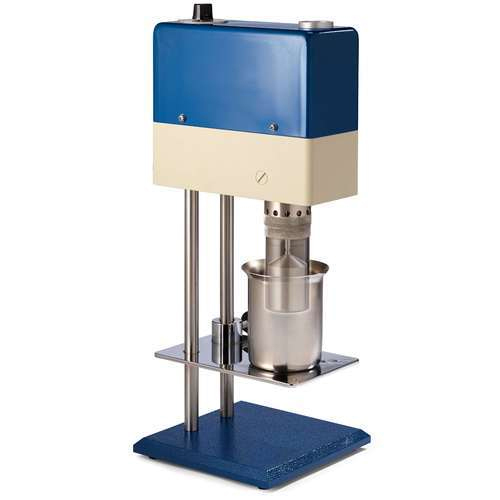

BF35 VISCOMETER
The BF35 maintains a constant shear rate and is an accurate and versatile tool for drilling fluid measurements.
The BF35 operates on a different measurement technique than traditional standard Brookfield Viscometers. The sample is placed in the cup and the spindle/chamber combination is then immersed into the sample. When the motor is turned on, the chamber rotates while the spindle remains stationary. When the dial reading becomes stable, the torque reading is recorded and manually converted into a viscosity value in centipoise.
Features & Benefits
• Easy speed changes
• Conventional oilfield rotor, bob and torsion spring
• Adjustable table height to accommodate a variety of beaker/container sizes
• Shear stress values displayed on easy-to-read lighted dial
• Maintains a constant shear rate under varying input power and drilling fluids
• Measures viscosity of drilling muds and fracturing fluids according to established methods from the American Petroleum Institute and the ASTM
Specifications
Motor Speeds: 8 fixed (3, 6, 30, 60, 100, 200, 300, 600)
Min. Viscosity: 0.5 cP (@600 rpm)
Max. Viscosity: 10,000,000 (@0.01 rpm)
Speed Accuracy: 0.001 (rpm)
Readout: Direct dial with light
Heat Cup: Stainless steel, 150 Watt, 190°F (88°C) maximum temperature recommended
Geometry: True Couette Coaxial Cylinder
Power: 97-250 VAC, 50/60 Hz (12 volt operation requires special cable)
Carrying Case: Included
CAP1000 VISCOMETER
The CAP 1000+ Viscometer is a compact, heavy-duty instrument that is ideal for fast, easy, repetitive testing on the production floor or in the QC lab. Small sample size is a plus, along with integrated temperature control built into the sample plate.
Features & Benefits
• Quick single point test
• Choice of shear rate. Standard speeds include 750 and 900 rpm to provide shear rate at 10,000 sec-1.
• Rapid temperature control with built-in Peltier element in sample plate
• Meets Industry Standards: ASTM D4287, ISO 2884 and BS 3900
• Rugged design can handle production environment
• Small Sample Size, < 1 mL, Simplifies Testing
• Easy to Clean
• Customizable options
• Parallel printer output
Let Us Help You Configure the Cap 1000+ To Provide a Simple, Single Point, Viscosity Test
• Specify one speed or shear rate if this is required for your method.
• Indicate viscosity range.
• Select the temperature range that best suits your application: 5°C to 75°C or 50°C to 235°C
• Choose from 10 spindles for multiple viscosity ranges
• Brookfield will help choose the appropriate instrument configuration.
CAP2000 VISCOMETER
The CAP2000+ also offers lower shear rates, making it suitable for many applications where small sample volume and good temperature control are necessary.
Brookfield's CAP-2000+ offers expanded temperature and viscosity ranges with variable speed capability. The CAP2000+ also offers lower shear rates, making it suitable for many applications where small sample volume and good temperature control are necessary. And the rugged, easy-to-use design make it perfect in environments where other instruments won't last.
Features & Benefits
• Expanded Ranges
• Viscosity0.2 - 15,000 Poise
• Shear Rate10 - 13,000 sec-1
• Temperature5-75°C or 50-235°C
• Speed of Rotation5-1000 RPM
• Meets Industry Standards: ASTM D4287, ISO 2884 and BS 3900
• Small sample size, < 1 mL, simplifies testing
• Integrated temperature control
• Optional CAPCALC32 software for complete control and data analysis
• Open system for quick and easy cleaning

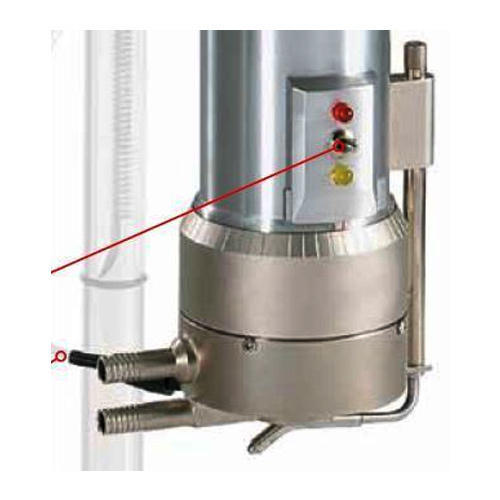

CONE PLATE WELLS BROOKFIELD VISCOMETER
The Wells-Brookfield Cone/Plate Viscometer gives researchers a sophisticated instrument for routinely determining absolute viscosity of fluids in small sample volumes. Its cone and plate geometry provides the precision necessary for development of complete rheological data
Principle Of Operation
The Wells-Brookfield Cone/Plate Viscometer is a precise torque meter which is driven at discrete rotational speeds. The torque measuring system, which consists of a calibrated beryllium-copper spring connecting the drive mechanism to a rotating cone, senses the resistance to rotation caused by the presence of sample fluid between the cone and a stationary flat plate.
The resistance to the rotation of the cone produces a torque that is proportional to the shear stress in the fluid. This reading is easily converted to absolute centipoise units (mPa·s) from pre-calculated range charts. Alternatively, viscosity can be calculated from the known geometric constants of the cone, the rate of rotation, and the stress related torque. The correct relative position of cone and plate is obtained by following a simple mechanical procedure without the need for external gauges or supplementary instrumentation.
The stationary plate forms the bottom of a sample cup which can be removed, filled with .5 ml to 2.0 ml of sample fluid (depending on cone in use), and remounted without disturbing the calibration. The sample cup is jacketed and has tube fittings for connection to a constant temperature circulating bath. The system is accurate to within ±1.0% of full scale range. Reproducibility is to within ±0.2%. Working temperature range is from 0°C to 100°C.Various cone spindles are available for use with the Wells-Brookfield Cone/Plate instruments. One cone spindle is provided with the instrument and is calibrated for use with the sample cup. Additional cone spindles may be purchased and will be calibrated for use with the same sample cup.
Versatility Of Application
The Wells-Brookfield Cone/Plate Viscometer provides a wide variety of shear rates and viscosity ranges, which can be further extended by the use of interchangeable cone spindles. Different models can be selected to meet the specific range of viscosities and shear rates required.
Shear rates as high as 1875 sec-1 (DV3TCP) can be achieved.
The small sample volume required permits rheological evaluations to be made on materials where sample availability is limited, such as biological fluids and thick film coatings that contain precious metals. All wetted parts are stainless steel for corrosion resistance and ease of cleaning. Optional purge fitting, lure fitting, and embedded temperature probe available.
Electronic Gap
Wells-Brookfield Cone/Plate Digital Viscometers are now supplied with an advanced Electronic Gap Setting feature. This technology allows faster set-up time and minimizes the possibility of gap adjustment errors. With the enhanced system, a bright LED lights up when a hit point is achieved. A simple turn of the micrometre adjustment ring and the gap is set, reducing the time required associated with manual detection methods.
The new electronic gap setting system is now a standard feature on our complete line of Wells-Brookfield Cone/Plate Digital Viscometers. These instruments provide precise shear profiles necessary to determine viscosity and develop rheological data.
Features & Benefits
• Determine absolute viscosity of small samples (0.5 - 2.0 mL)
• Precise shear rates for determining a material's flow curve behaviour
• Rapid temperature control due to small sample size
• Electronic gap adjustment for simplified setup and increased throughput
• Touch Screen Display available on DV3T Rheometers and DV2T Viscometers
• Auto-zero function to ensure precision torque measurement
• Auto-range function to define full scale range (FSR) for all spindle/speed combinations
• Torque measurement accuracy: 1% of full scale range
• Repeatability: 0.2% of full scale range
FALLING BALL VISCOMETER
The Falling Ball Viscometer uses the simple, but precise, Höppler principle to measure the viscosity Newtonian fluids by measuring the time required for a ball to fall under gravity through a sample-filled tube.
The Höppler principle is used to measure the viscosity of Newtonian liquid by measuring the time required for a ball to fall under gravity through a sample-filled tube that is inclined at an angle. The average time of three tests is taken; the result is converted into a viscosity value using a simple formula.
Two models are available:
KF30 has a fixed angle of 80° and complies with DIN 53015
KF40 can be angled at 50°, 60°, 70° and 80°.
Features & Benefits
• Pivot bearing allows for quick and easy tube rotation - ideal for repeat tests
• Connection to circulating bath for temperature control of sample
• Set of six balls to test a wide variety of samples
• Complete with temperature probe
• Accuracy 0.5% to 2.0% depending on ball being used
Applications:
Beverages, Coatings, Cosmetics, Detergents, Food, Paint, Petroleum Products, Pharmaceuticals, Polymers, Soap
KU-3 VISCOMETER
The KU-3 Viscometer displays, Krebs units, gram units and centipoise for paints, coatings and inks.
Why the KU-3? This instrument is used widely for making viscosity measurements on paints/coatings in accordance with ASTM D562.
Features & Benefits
• Continuous sensing and display in Krebs units, grams, and centipoise.
• Magnetic spindle coupling.
• Allows rapid sample measurement to determine required consistency.
• LED Digital Display of: Krebs Units (increased resolution in 0.1 KU increments), Grams (in 1 gm increments) and Centipoise (cP).
• Expanded measurement range (40 to 141 KU; 32 to 1099 g; 27 to 5274 cP).
• Accuracy to ±1% of full scale range.
• Reproducibility to ±0.5% of full scale range.
• Output to parallel printer for automatic test documentation.
• Easy to use; no weights; simplifies an established test procedure.
• Compatible with industry specification (ASTM D562).
• Base accommodates standard pint, ½ pint, and quart cans.
• The optional paste spindle is suitable for use with high consistency materials such as roller mill pastes.
• NIST traceable viscosity standards available.
Applications
Paints & Coatings, Adhesives, Inks, Pastes
