Analytical Devices: Incubators

Product Range:

IVF Module For ICOmed

Incubators (IN/IF/IN Plus/IF Plus)

Cooled Storage Incubators (IPS)

Compressor-Cooled Incubators (ICP)

Peltier-Cooled Incubator (IPP/IPP Plus)

CO2 Incubators (ICOmed)

Summary :

IN VITRO FERTILISATION: IVF module for CO2 incubator ICOmed

When it comes to success in vitro fertilisation, precision and reliability of CO2 incubators are of utmost importance. Even minimal discrepancies in CO2 and O2 concentration, temperature or humidity can influence the development of the cell culture. To keep the recovery times of the ICO105med incubator to a minimum, Memmert has developed an IVF module with separate slide-in units for the Petri dishes. This CO2 incubator ICO med is classified as a class IIa medical device and complies with the basic safety requirements as stipulated in the European Medical Device Directive (93/42/EEC).

• Temperature range up to +50 °C

• 2 model sizes (56 & 107 litres volume)

• Cultivating of Petri dishes in separate slide-in units: quick recovery times due to minimum air exchange

• Active humidity control: minimum vaporisation in the chamber interior, no condensation, no cultivation with oil required

• The interior including all installations and sensors can be sterilised at 180 °C in a 1-hour programme

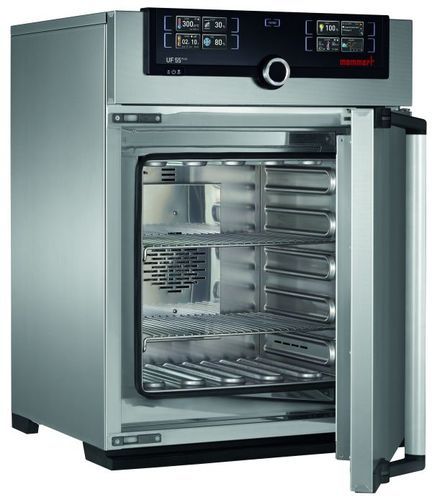

HIGHLY SENSITIVE, EXTREMELY ACCURATE: Lab incubator I Series

In the laboratory, the incubator I is ideal for all applications with temperatures up to +80°C – specifically for incubating living cultures at +37 °C. Thanks to the finely-tuned control technology, critical temperature overshoots are completely ruled out, valuable loads are therefore warmed up particularly carefully in this highly precise microbiological incubator.

• Temperature range up to +80 °C

• 8 model sizes (32 to 749 litres volume)

• 2 model variants: Single DISPLAY and Twin DISPLAY

• Natural convection or forced air circulation N/F

• Double doors (interior glass, exterior stainless steel) for a clear view without a drop in temperature

• Activation of sterilisation routine via Control COCKPIT (Twin DISPLAY)

COOLED STORAGE INCUBATORS IPS

This is useful to Store industrial or microbiological samples in a space-saving manner. The IPS cooled storage incubator exactly meets the requirements of the food or cosmetics industry, medicine, pharmaceutics for storing samples at constant temperatures: absolute reliability, precision and durability, and particularly environmentally friendly at the same time.

• Temperature range +14 °C to +45 °C

• 2 model sizes (256 and 749 litres volume)

• 1 model variant: Single DISPLAY

• Double doors as standard: prevention of contamination and drops in temperature, and at the same time an optimal view of the load through fully glazed interior doors

• Fans integrated in the Peltier elements ensure rapid energy transport and optimal temperature distribution

INCUBATING, DRYING AND STORING IN THE COOLED INCUBATOR ICP

Our ICP compressor-cooled incubator offers great results whenever a rapid and precise changeover between heating and cooling phases in ramp operation is required. Due to the finely tuned control technology, temperatures exactly reach the set point values without the need for energy-intensive bursts of power.

• Temperature range up to +60 °C

• 5 model sizes (53 to 749 litres volume)

• 1 model variant: Twin DISPLAY

• Double doors standard for all models: Prevention of contamination and drops in temperature, and at the same time an optimum view of the sensitive load through wide-area interior glass doors

• Very good air circulation in the working chamber through sophisticated ventilation technology

• Intelligent defrosting function

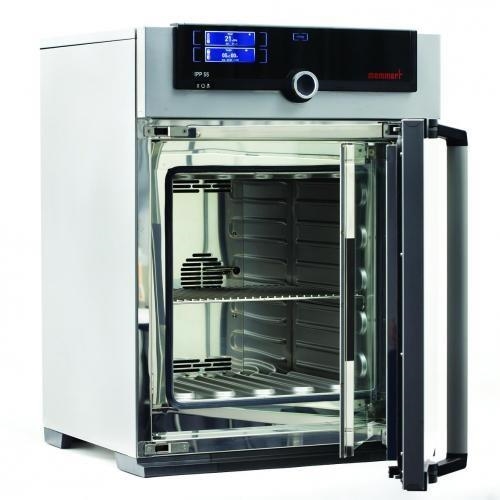

ALMOST NOISELESS AND VIBRATION-FREE: PELTIER-COOLED INCUBATOR IPP

Excellent controllability, extremely small control fluctuations, low-vibration operation and impressive energy savings provide the added value from this perfect adaptation of Peltier technology. With its extensive range of appliances with Peltier elements for heating and cooling – such as the IPP Peltier-cooled incubator, the HPP constant climate chamber, the IPS cooled storage incubator and the Peltier-cooling unit for water baths – Memmert is the market leader in this technologically sophisticated segment.

• Temperature range 0°C up to +70 °C

• 7 model sizes (32 to 1060 litres volume)

• 2 model variants: SingleDISPLAY and TwinDISPLAY

• Double doors standard for all models: Prevention of contamination and drops in temperature, and at the same time an optimum view of the sensitive load through wide-area interior glass doors

• Fans integrated in the Peltier elements ensure rapid energy transfer and optimum temperature distribution
